The HGZ turning rolls include one power bed and one idler bed. The turning rolls below 40T adopt helical-worm and cycloidal pin wheel decelerator, and over 40T adopt cycloidal pin wheel or helical worm decelerator.

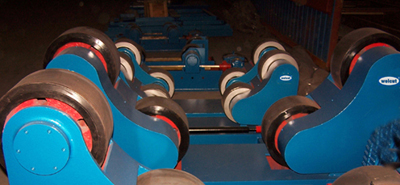

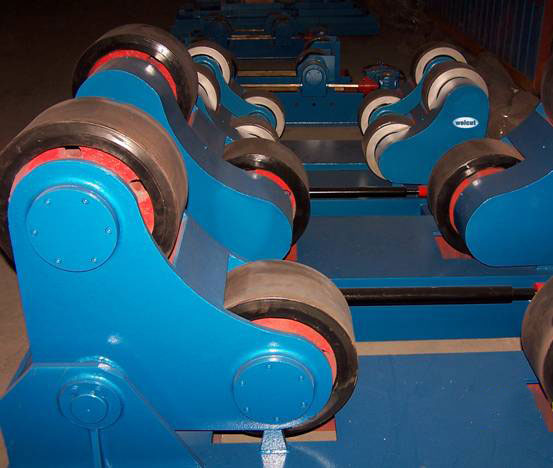

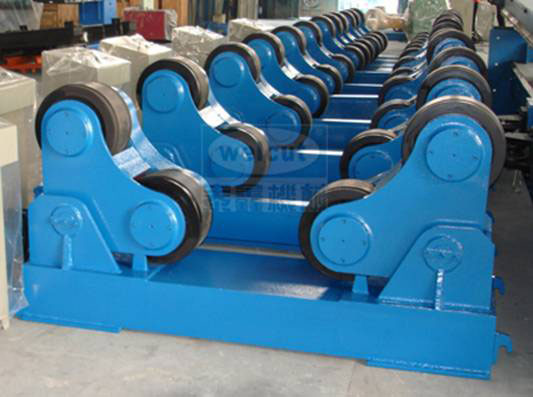

Self-alignment turning rolls can adjust automatically the swing angle as per the owrkpiece diameter.

The wheels are new combination style one rubber wheel and two steel wheels with big load capacity, big friction, strong drive and glue force.
Imported international famous transducer realized the stepless regulation with wide speed range, high precision and big starting moment.
The control system has the synchronized linkage interface with manipulator and has remote controller, easy and reliable.

Type				HGZ-5	GHZ-10	HGK-20	GHZ-30	GHZ-40	GHZ-60	GHZ-80	GHZ-100	GHZ-150
Max load weight(T)				5	10	20	30	40	60	80	100	150
Roller assembly	Metallic		Diameter(mm)	244	294	344	344	394	444	494	494	494
			Width(mm)	20	25	30	30	40	50	60	80	80
	rubber		Diameter(mm)	250	300	350	350	400	450	500	500	500
			Width(mm)	100	120	120	120	120	120	120	120	120
Cylinder diameter		Min diameter(mm)		250	320	500	550	600	750	850	1000	1000
		Max diameter(mm)		2500	3200	3800	3800	4500	5000	5500	6300	6300
Motor power(KW)		Single drive(KW)		0.75	1.1	1.5	3	3	4	4	5.5	7.5
		Dual-drive(KW)					2*1.5	2*1.5	2*2.2	2*3	2*3	2*4
Roller linear speed(m/h)				6-60
Way of setting				AC frequency conversion stepless inverter speed regulation
