    Name: adjustable welding rotators(turning rolls)
    Introduction:

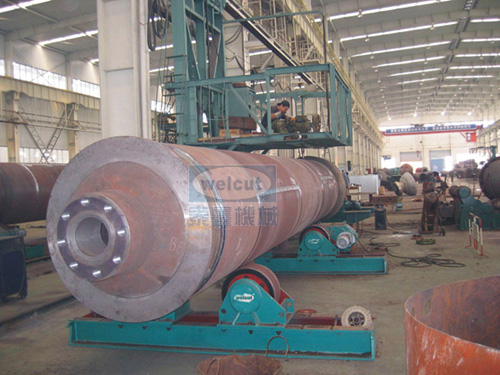

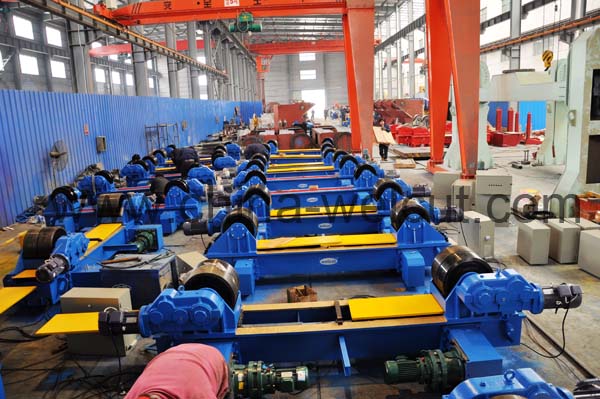

    adjustable turning roll(rotators)

    adjustable turning rolls include one power bed and one idle bed. The turning rolls below 40T adopt helical worm & cycloidal pin wheel decelerator, and over 40T adopt cycloidal pin wheel or helical-worm decelerator.

    This series turning rolls adopt screw to adjust, available for changes of workpiece diameter, simple structure and strong drive and glue force.
    This wheels are new combination styleone rubber wheel and two steel wheels with big load capacity, big friction, strong drive and glue force.
    Imported transducer realized the stepless regulation with wide speed range, high precision and big starting moment.

    The control system has the synchronized linkage interface with manipulator and has remote controller, easy and reliable.

    Type HGK-2 GHK-5 HGK-10 HGK-20 HGK-30 HGK-40 HGK-60 HGK-80 HGK-100
    Max load weight(T) 2 5 10 20 30 40 60 80 100
    Roller assembly Metallic Diameter(mm)   244 294 344 344 394 444 494 494
    Width(mm)   16 38 45 50 50 50 60 80
    rubber Diameter(mm) 200 250 300 350 350 400 450 500 500
    Width(mm) 80 100 120 120 120 120 120 120 120
    Cylinder diameter Min diameter(mm) 150 250 300 500 500 500 500 800 800
    Max diameter(mm) 2000 2800 3200 4500 5000 5000 5000 6000 6000
    Motor power(KW) 2*0.18 2*0.37 2*0.55 2*1.1 2*1.1 2*1.5 2*2.2 2*3 2*3
    Roller linear speed(m/h) 6-60
    Way of setting AC frequency conversion stepless inverter speed regulation
    Type HGK-100 HGK-160 HGK-200 HGK-250 HGK-300 HGK-500 HGK-800 HGK-1000 HGK-1200
    Max load weight(T) 100 160 200 250 300 500 800 1000 1200
    Roller assembly Metallic Diameter(mm) 500 600 700 700 800 800 900 900 1000
    Width(mm) 200 200 250 250 300 350 400 400 480
    Cylinder diameter Min diameter(mm) 800 800 800 800 800 1000 1000 1000 1000
    Max diameter(mm) 6000 6000 6500 6500 6500 8000 8000 8000 8000
    Motor power(KW) 2*3 2*4 2*4 2*5.5 2*5.5 2*7.5 2*11 2*11 2*15
    Roller linear speed(m/h) 6-60
    Way of setting AC frequency conversion stepless inverter speed regulation
