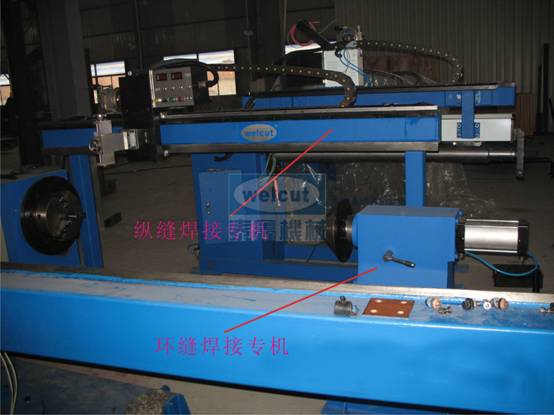

    Name: welding machine for vertical-beam
    Introduction:

    longitudinal seam welding(deamer welding)

    ZF series are one kind of special welding machine for welding vertical-beam of sheet. This machine is mainly used for welding the seams of thin wall shells. It is provided with the ball-bearing platform. And it also can be used for butt welding of the sheet metal. We can weld above 0.5mm carbon steel, stain less steel, and aluminum sheets. It is one of the important and indispensable machines which are used in the pressure vessel, chemical equipment, medical apparatus, food machinery and home-appliances industries.

    type Welding length(mm) Min diam of shell(mm) Welding thickness(mm) Welding velocity(mm/min) Accuracy of traveling(mm)
    ZF-1000 1000 110 0.5-3 170-1700 0.3
    ZF-1500 1500 180 0.5-3 170-1700 0.3
    ZF-2000 2000 200 0.5-3 170-1700 0.3
    ZF-2500 2500 260 0.5-3 170-1700 0.3
    ZF-3000 3000 340 0.5-3 170-1700 0.3
    ZF-3500 3500 400 0.5-3 170-1700 0.3
    ZF-4000 4000 440 0.5-3 170-1700 0.3
