    Name: edge milling machine
    Introduction:

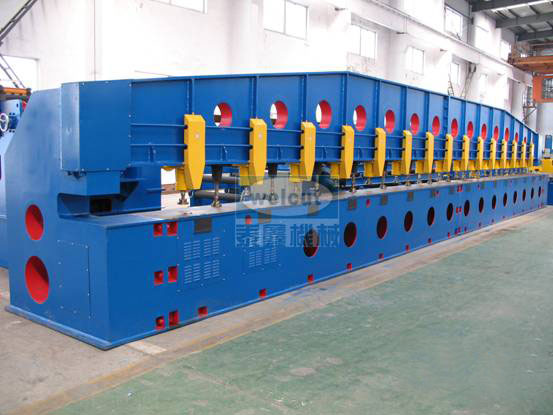

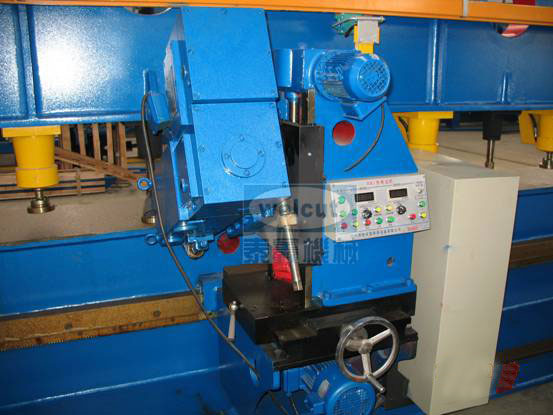

    Edge milling machine

    Compared with the traditional edge milling machines, this machine series is dismountable in their tracks, more rational in structure by heat-treatment of the bench, more reliable and stable in the milling & turning head`s running. The feed and feed-back systems are fully independent respectively. The feed and feed-back systems are fully independent respectively. The feed-back is quick and is highly efficient. The angle of the milling tool`s tray is convenient in adjustment, and the custom-built tool rest and the normal tool rest can be inter-converted. They are updated products of the traditional edge milling machine.

    Type GBX-3 GBX-6 GBX-9 GBX-12 GBX-15 GBX-18
    Effective milling zone length(mm) 3 6 9 12 15 18
    Milling angle adjustment 0-45 0-45 0-45 0-45 0-45 0-45
    Applicable steel plate thickness(mm) 6-50 6-50 6-50 6-50 6-50 6-50
    Max milling width by on pass(mm) 8 8 8 8 8 8
    Milling travel speed(m/min) 0.25-0.6 0.25-0.6 0.25-0.6 0.25-0.6 0.25-0.6 0.25-0.6
    Spindle speed(rpm) 125-630 125-630 125-630 125-630 125-630 125-630
    Hydraulic pressure(mPa) 3.5 3.5 3.5 3.5 3.5 3.5
    Number of clamping shoes(ea) 5 8 11 15 19 23
    Pass height(mm) 900 900 900 900 900 900
    Feeding motor capacity(Kw) 1.5 1.5 1.5 1.5 1.5 1.5
    Hydraulic motor capacity(Kw) 4 4 4 4 4 4
